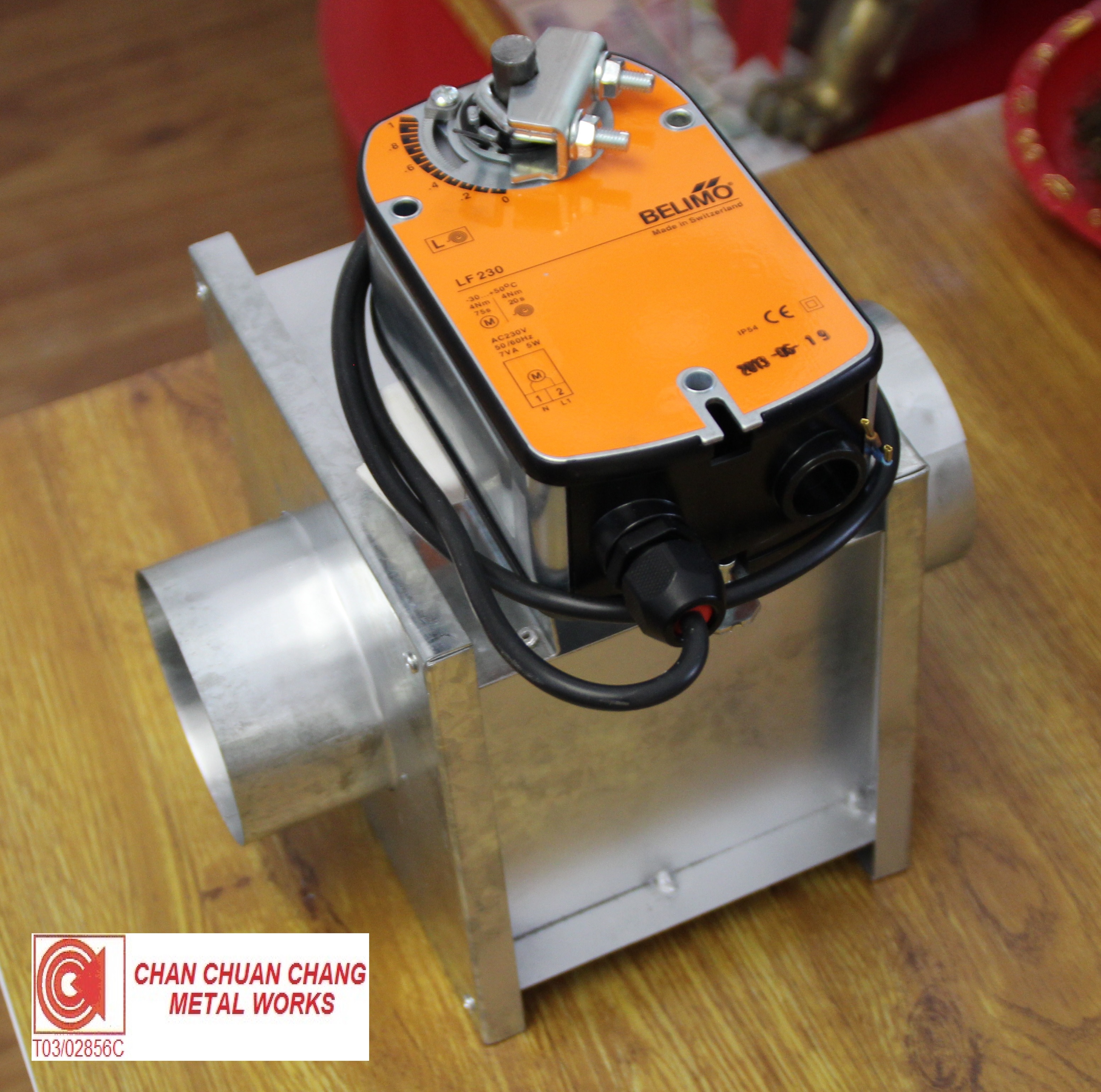

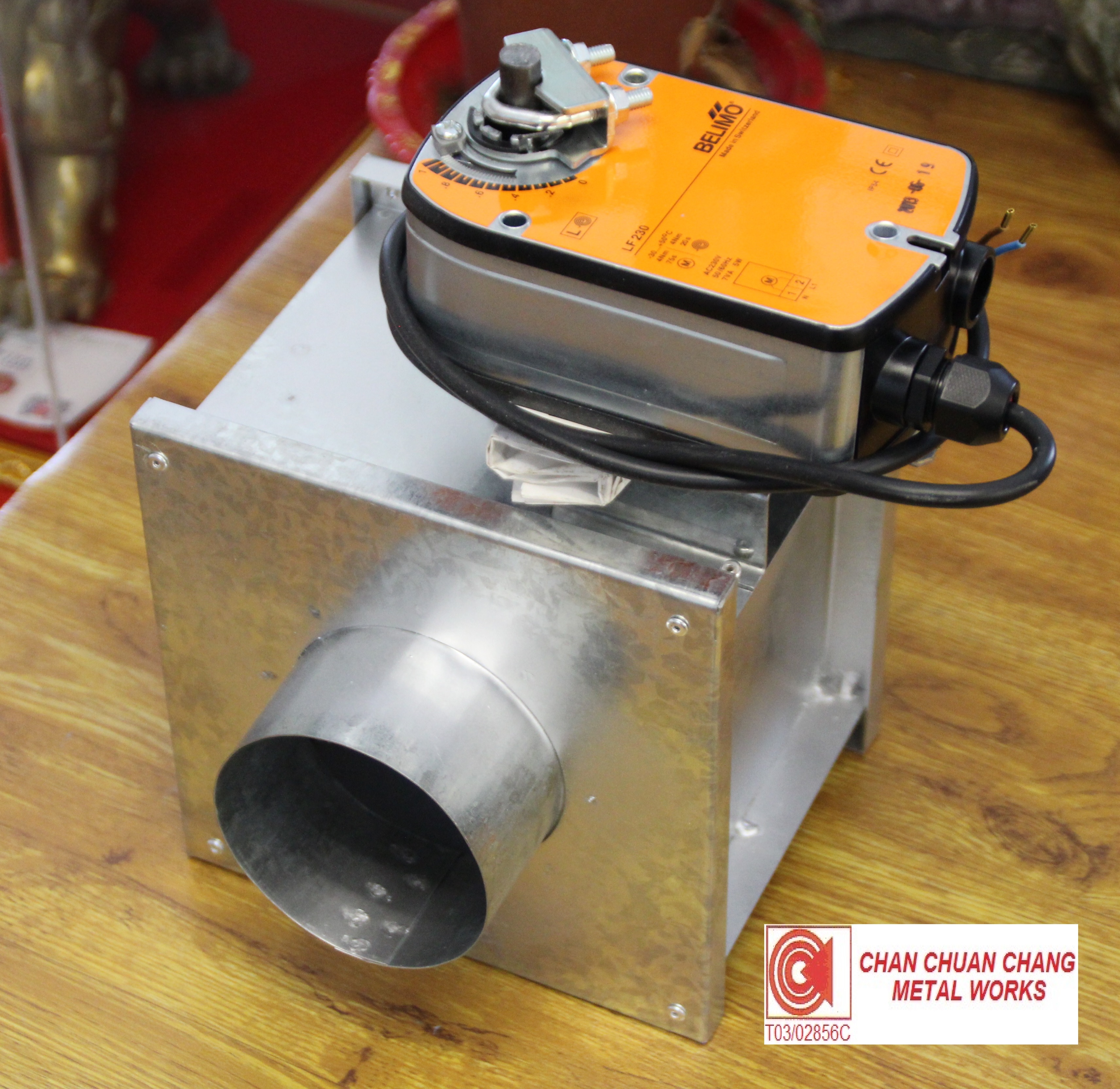

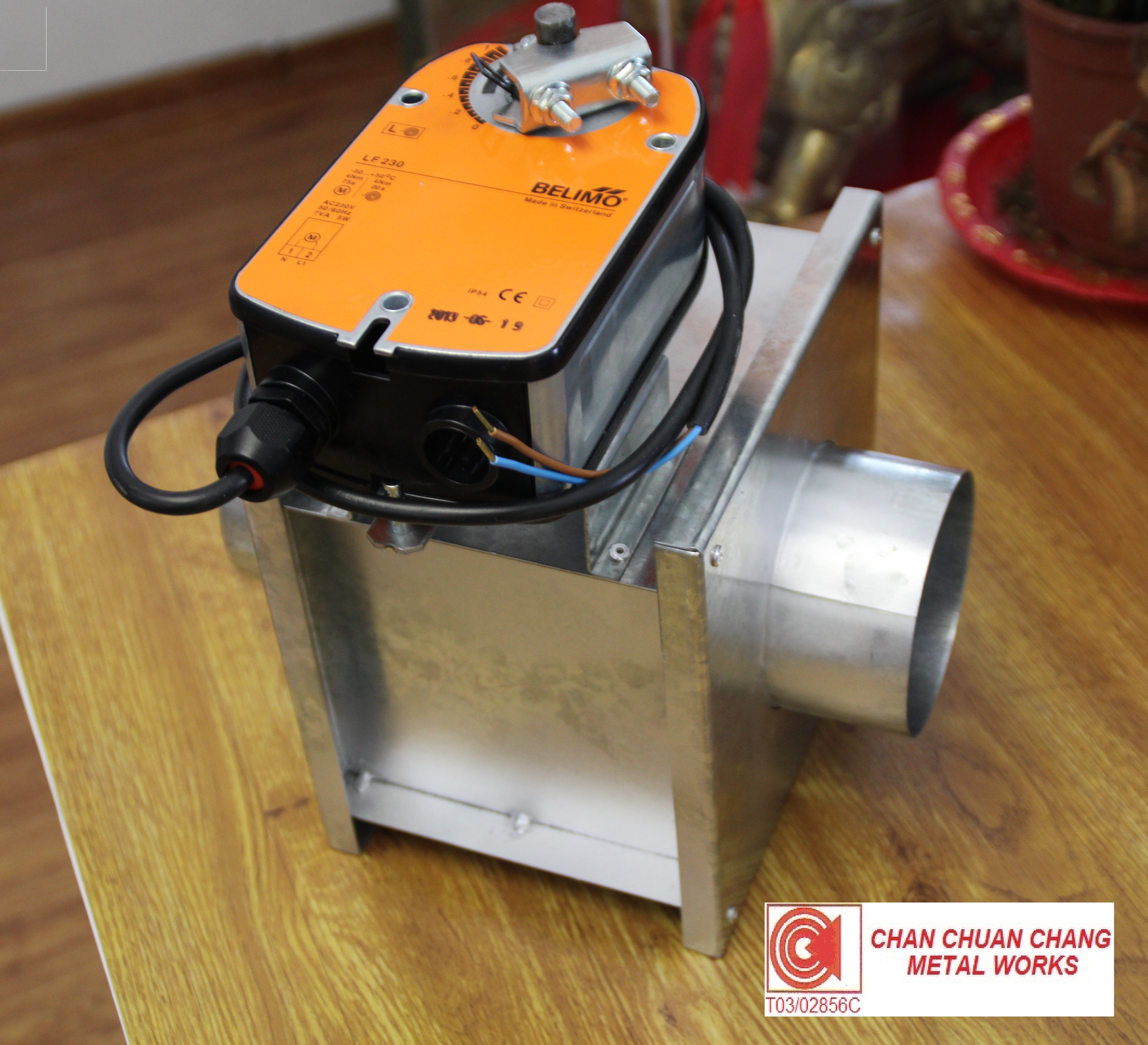

Motorised Damper
Product Name: Motorised Control Damper

Model: MCD

Material: G.I. / Stainless Steel

Features:
This model uses an actuator which is coupled to the shaft to determine the amount of air flowing through ventilation duct systems.

The standard material used for the construction are G.I. Steel with flange for duct mounting. Other material such as stainless steel may be available upon request.

The damper casing parts are welded together to form the frame where bronze bush are installed.
Blade shaft may be continuous or in sections. Blade linkage are installed to prevent chatter and blade damage.

Multi blades may be constructed when damper width exceeds 300mm. The standard depth of damper is 6. Unless specified, damper flanges will be supplied without screw holes.
